Hardware configuration:
Dimensions: 97mm 97mm 222mm
Processor: Qualcomm IPQ5000 Dual-core A53 1.0GHz CPU
Network processing unit: Single core 1.0GHz NPU
Memory: 256MB
2.4G Wi-Fi: 22 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps)
5GHz Wi-Fi: 22 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)
Antennas: High gain antennas
Heat dissipation: Natural heat dissipation
Total ports:

• 110/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX)
• 310/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX)


LED indicator light: 2 lights, System indicator 1, Internet indicator 1
System reset button: 1
Mesh networking button: 1
Power input port: 1
Protocol standards: IEEE 802.11a/b/g/n/ac/axIEEE 802.3/3u/3ab

Wireless specifications:
Dual-band: 2.4GHz, 5GHz
Modulation:

• 11bDSSSDBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
• 11a/gOFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),64QAM(48/54Mbps)
• 11nMIMO-OFDM:BPSK,QPSK,16QAM,64QAM. Data rateMCS0-MCS15
• 11acMIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
• 11axMIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
• Data rates: MCS0-MCS11 (supports 2 streams).

Software specifications:
Operating system: MiWiFi ROM, a smart router operating system based on OpenWRT
WiFi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden
Management applications: Supports Web, Android, iOS

Working Environment:
Working environment Temperature: 0-40
Operating humidity: 10%-90%RH (non-condensing)
Storage temperature: -40-70
Storage humidity: 5%-90%RH (non-condensing)

Package contents:

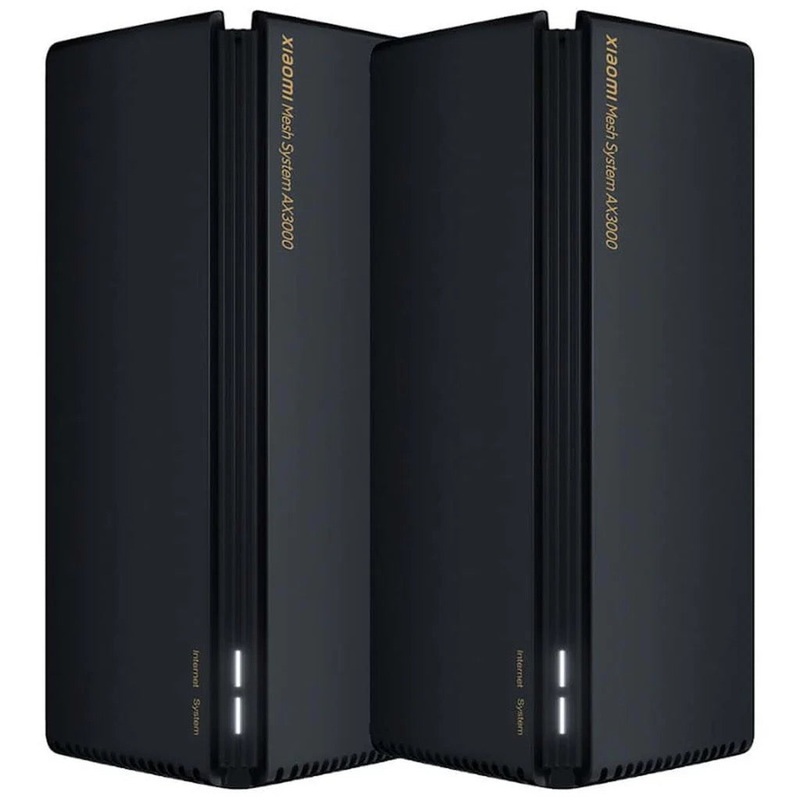

• Xiaomi Mesh System AX3000
• Instruction Manual
• Power cord
• Network cable
